Happymodel Moblite6 1S 65mm brushless whoop (FrSky)

Артикул: Moblite6_frsky
7 100 рублей
Подробнее
Осталось не много

Happymodel Moblite6 1S 65mm brushless whoop (FrSky) купить в магазине QUADRO.TEAM с доставкой по всей России.

Перейти к описанию
Как получить товар:

Specifications:
Brand Name: Happymodel
Item Name: Moblite6 1S 65mm ultra light brushless whoop
Wheelbase: 65mm
Size: 80mm*80mm*25mm
Weight: 18.5g (without battery)
Weight:26g(with Original 1s 300mah Lipo battery )

Features:
The lightest 1s 65mm brushless whoop
Powerful and efficiency
The lightest 1s AIO 5IN1 F4 flight controller
New Unibell EX0802 brushless motors
VTX power switchable 25mw~200mw
Low profile Canopy design

Package includes:

Item Name Qty
65mm Frame (Mobula6 frame) 1
Option1: DiamondF4 FR built-in SPI Frsky receiver 1
Option2: DiamondF4 FS built-in SPI Flysky receiver
EX0802 KV19000 Unibell brushless motor 4
Gemfan 1219 31mm propeller(4cw+4ccw) 1
Runcam Nano3 1
Built-in 5.8G 40ch 25mw-200mw VTX 1
1s 300mah Lipo battery 2
1S USB charger 1
Propeller disassemble tool 1
Screwdriver 1

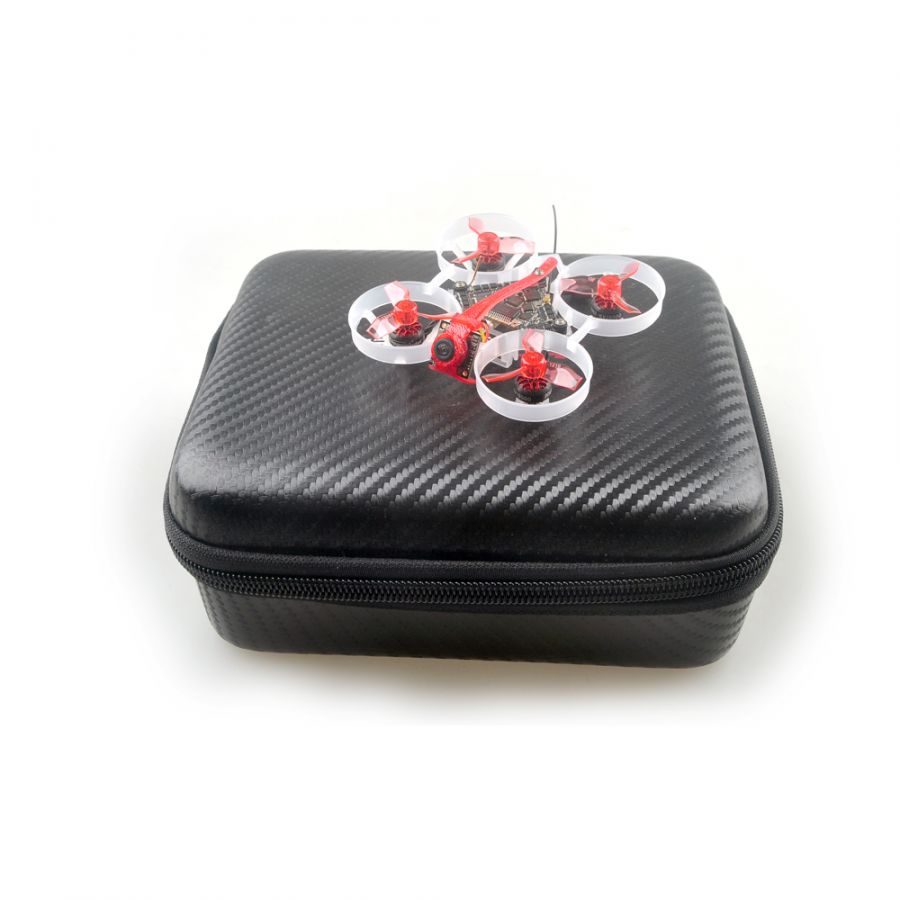

Happymodel Carry case 1



Spare parts specifications:

Motor Mode: EX0802 19000KV
Configu-ration:9N12P
Stator Diamter:8mm
Stator Length:2mm
Shaft Diameter:Φ1mm
Motor Dimension(Dia.*Len):Φ10.5mm*14.9mm
Weight(g):1.7g
No.of Cells(Lipo):1S only
Flight controller (Frsky SPI RX version) DiamondF4 FR FC Firmware target: CrazybeeF4FR
(Flysky SPI RX version)DiamondF4 FS FC Firmware target: CrazybeeF4FS
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Original whoop size compatible
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G VTX
Built-in SPI Frsky/Flysky receiver
Built-in 5V 1A BEC
Onboard 4in1 ESC MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HVCurrent: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: O_H_5_REV16_8.HEX
Default protocol: DSHOT600
Onboard Frsky SPI D8 receiver Version SPI BUS receiver Frsky D8 compatible
Compatible Non EU transmitter D8 modelChannels: 8ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 200m~300m
Onboard Flysky SPI receiver Version SPI BUS receiver
Protocol: AFHDS and AFHDS-2A Switchable
Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)
No ground interference ( Transmitter and receiver 1 m from the ground): 200~300m
Failsafe support
Onboard 5.8g VTX Output power: 25mw~200mw switchable
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Frequency: 5.8GHz 5bands 40 channels(include Race band)Smartaudio ready
Runcam Nano3 Model: RunCam Nano 3
Image Sensor: 1/3″ CMOS
Horizontal Resolution: 800TVL
Lens : 2.3mm(M6.5) FOV 140°
Signal System: PAL/NTSC Non Switchable
S/N Ratio: >50dB
Electronic Shutter Speed: Auto
Auto Gain Control (AGC): Auto
Min. Illumination: 0.01Lux@1.2F
D-WDR: Auto
Day/Night: Color
Power:DC 3-5.5V
Current: 110mA@5V 120mA@3.3V
Housing Material: ABS
Net Weight: 1.2g
Dimensions: L14mm*W14mm*H9mm
Lipo Battery Capacity:300mAh
Voltage:3.8v
Continuous Discharge Rate: 30C
Size: 57mmx12mmx7mm
Weight: 7.5g
Connector: PH2.0
